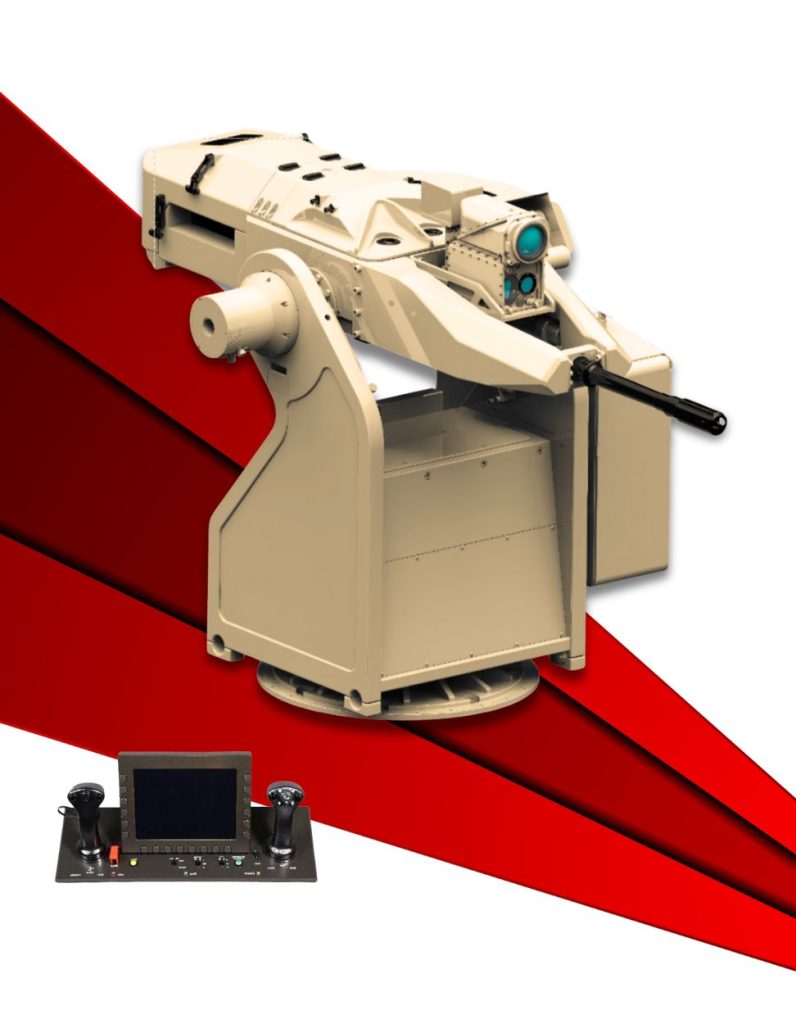

LAND ROGUE - DL (30MM)
DEFA 30mm REMOTELY OPERATED GUN AND OBSERVATION SYSTEM
The Land Rogue is product line of remotely controlled weapon systems developed for use on Armoured Vehicles and Point- Defence Installations. Featuring calibres from 7,62mm to 30mm and technology such as automated target tracking, stabilised aiming, range finding, thermal vision and more, built into a low maintenance and low cost platform, ready for integration into modern Combact Management Systems.
FEATURES
- Remote operation by bridge personnel
- Automated optical target tracking
- Fibre optic gyro-stabilised aiming
- Night & day operation
- Fire control software
- Low maintenance, ease of operation
ARMAMENT
- Traverse coverage: n x 360
- Elevation: - 35
- Programmable no-go & no-fire zones
- Slew rates: up to 1 rad/s (≈60º/s)
- Low speed: <5.0 mrad/s (≈0.028º/s)
GUN CONTROL
- Traverse coverage: ±170⁰
- . (Option nx360⁰)
- Elevation:-20⁰ to +60⁰
- . (Mount dependent)
- Programmable no-go & no-fire zones
- Slew rates:up to 1 rad/s (≈60º/s)
- Low speed: < 0.5 mrad/s (≈0.028º/s)
INTERFACE & POWER REQUIREMENTS
- Integration with CMS (optional)
- Video recording (optional)
- Multi-function display with software defined keys:
- Mode selection and display
- Burst length display
- Armed or safe display
- Round count display
- Error messages
- Gun position indicator
- Hand controller keys:
- System on/off switch and indicator
- Armed/safe switch and indicator
- Optical tracking control
- Trigger
OBSERVATION/SIGHTING
- Standard: zoom CCD day sight
- 2x FOV thermal imaging night sight
- Laser range finder (LRF)
- Interface to separate stabilised sight (optional)
DIMENSIONS
- External mount: 600kg MAX
- Display & hand controller: 15kg
- Electronic controller: 50kg
- Trunnion centre: 1300mm
- Total height: 1000mm
AMMUNITION
- 100 Rounds (30mm x 113mm)
- Wide range of ammunition types available
DOWNLOAD SHEET
**Specifications are subject to change without prior notice. Consult us for the latest specifications
